Checklist Results

Checklist Results is an app allowing users to review Checklists completed by users on a mobile device. Results are recorded with header and detail information, with the left panel displaying the results in a chronological order with the selected result's detail in the right panel.

Results can be filtered, and are available to review. The selected result can be printed from this screen. The printed detail is a basic print, and any more formal formatted printing should be completed using the AMT Datamodels.

The intent of the app in an online review of the selected individual results' detail. You can manage the number of results that can display in the left panel. The default setting is 50, with options to modify to 10, 20, 25 or 100.

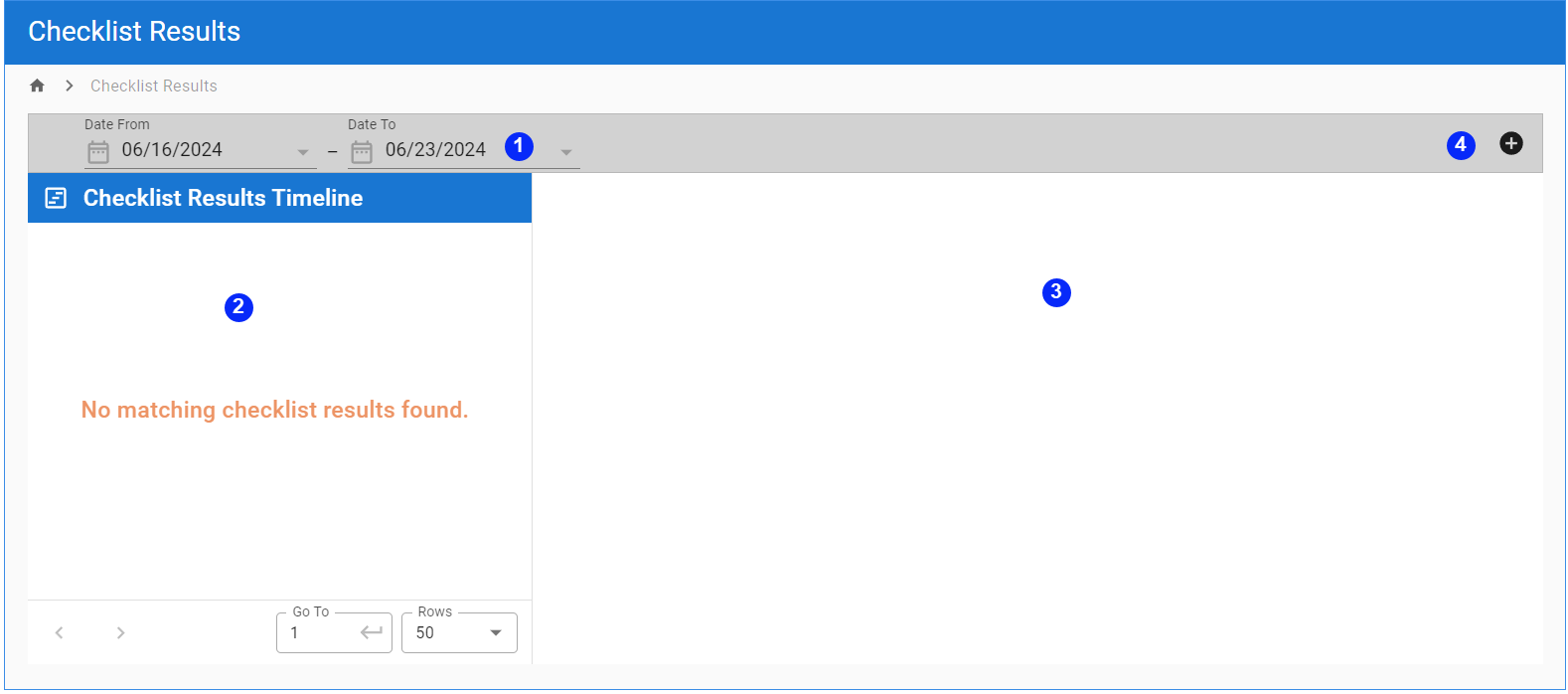

Item Description
1 Date range to locate checklists.
2 Summary checklist results in Date Order (latest first) based on filter. Selecting a result will display the detailed results in the right panel.
3 Displays the selected checklist's results.
4

Allows additional filtering.

  • Branch

  • Checklist Name

  • Employee

  • Equipment

  • Fleet

  • Site

  • Template Type

  • Work Order Number

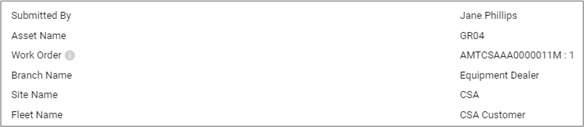

The detail in the right panel has a header section which is standard across all results. The detail of this section covers:

  • Submitted By - the user who completed the checklist on AMT Mobile.

  • Asset Name

  • Work Order - displays the work order number and operation number for applicable checklist results.

  • Branch Name

  • Site Name

  • Fleet Name

The result of the Checklist displays underneath the header detail. The information will display with the individual sections collapsed. Down arrows are included that can individually display each section or alternatively an Expand All down arrow displays in the toolbar next to the Print Option.

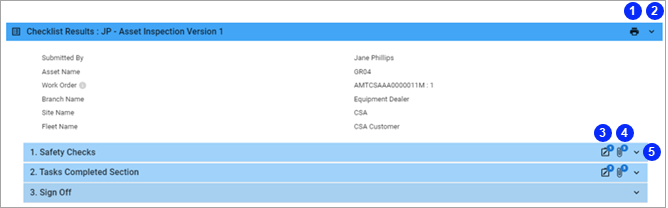

Item Description
1 Print Checklist result.
2 Expand all sections and display checklist results.
3 Questions in this section have Notes as part of the Checklist Result.
4 Questions in this section have Attachments as part of the Checklist Result.
5 Expand this individual section and display its associated Checklist Results.
