Process monitoring

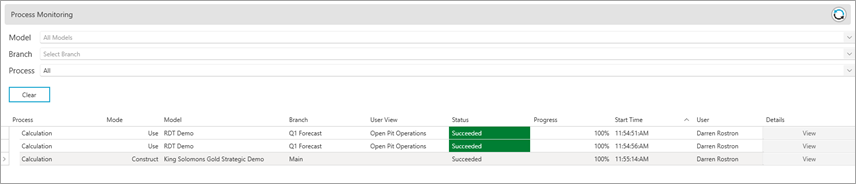

The Process Monitoring screen is used to review and monitor background processes particularly for calculations.

The process monitor displays the following detail:

• Process - the type of background process.

  • Calculation

  • Data transfer

  • Model publish

  • Model import

  • Live data synchronisation

  • Logic transfer

  • Master/child synchronisation

  • Data rollover

• Mode - the user mode in which the process was triggered.

• Model - the model in which the process was triggered.

• Branch - the branch in which the process was triggered.

• User View - the user view in which the process was triggered. (This is blank if triggered from Construct mode).

• Status - the status of the process.

• Progress - the progress of the process (percentage complete).

• Start time - the time at which the process was triggered.

• User - the user who triggered the process.

• Details - additional details fro the process. Click View to see more details.



You can filter the list of processes by model, branch and process type using the selection lists provided, or by clicking the filter icon in the column headers.

You can sort the list of processes using the arrow in the column headers.
